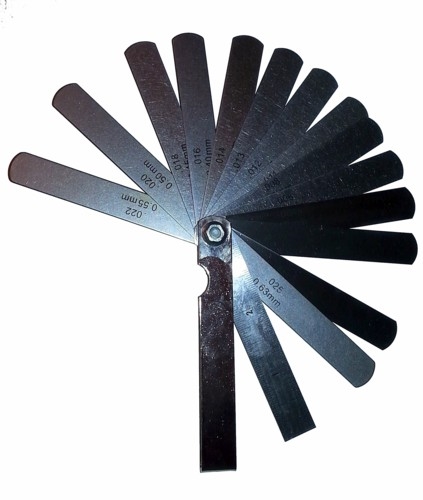

Feeler Gauge CC313 --- New Product ---
Thickness Gauge
Excellent tool for precisely measuring thickness, clearance, depth, and width.
Accurately determine clearance, ring gap clearance (0.018-0.025), ring end gap, gasket thickness, piston clearance, squish, and a multitude of other required measurements.
- Precision feeler gauge composed of tempered steel.
- 15 leaf set
- Integrated 3 inch ruler
- 3 inch leaf length
- 1/2 inch leaf width
- Maximum thickness in mm = 0.6350
- Maximum thickness in inches = 0.0250
- Minimum thickness in mm = 0.0510
- Minimum thickness in inches = 0.0020
- Range (inches) 0.0020 - 0.025.0
- Convenient carrying pouch included
- Metric and imperial system
- Leaf set : 0.002, 0.003, 0.004, 0.005, 0.006, 0.008, 0.011, 0.012, 0.013, 0.014, 0.016, 0.018, 0.020, 0.022, 0.025
- Feeler gauge / Thickness gauge
- Precision feeler gauge composed of tempered steel.
- 26 leaf set
- 3 inch leaf length
- 1/2 inch leaf width
- Maximum thickness in mm = 0.6350
- Maximum thickness in inches = 0.0250
- Minimum thickness in mm = 0.0510
- Minimum thickness in inches = 0.0020
- Range (inches) 0.0020 - 0.025.0
|
|
|
 |
|
 |
|
|
|
(
